LOCKTON 'E-Series' (Euro Narrow Leverset) SMART DOOR LOCK (Hinged Door) *Matte Black*

LocktonSKU: ELEV36-BLK-H25

Price: Login to view prices

Payment & Security

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

PRODUCT DESCRIPTION

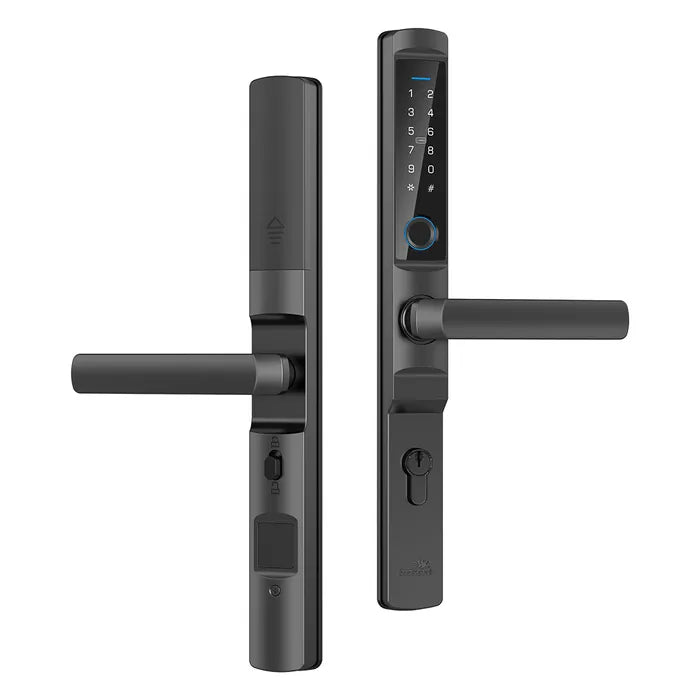

LOCKTON 'E-Series' Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

  • Designed for Hinged Door installations
  • The ELEV36 - Smart Euro Mortice Lock has double point locking & retrofits existing mortice locks in the market.
  • See RELATED PRODUCTS for additional Lock Faceplate and Strike Plate options for retrofitting
  • IP66 Rating on external handle means this lock can be installed in almost any application
  • Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
  • Lock is available in multiple backset sizes (25-70mm) ensuring a majority of existing installations can be upgraded
  • Step by step instructions ensure ease of installation and operation
  • Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
  • Add up to 300 x Users
  • Fingerprint sensing area is perfectly located within proximity of the lever to naturally read a thumb print for quick entry
  • Deadbolt can be thrown by pulling lever handle up, giving the combined security of a latching lockset and a deadbolt in the one lock
  • Optional G2 & G3 Gateway accessories allow for remote access and control of lock via internet

Lock is supplied with the following:

  • 1 x ELEV36 Smart Lock Handle Set
  • 2 x RFID Key Fobs
  • 4 x Screw/Spindle Packs for varying door thicknesses
  • 4 x AAA Batteries
  • 1 x Smart Euro Mortice Lock (ordered to desired backset from dropdown)
  • 1 x 6-pin C4 Half-Euro Cylinder
  • 1 x Fitting Template
  • 1 x Instruction Manual

PRODUCT SPECIFICATION

  • Finish: Black
  • Dimensions (L x W): 345 x 36mm
  • Pitch: 85mm
  • IP Rating: 66
  • Lock Backset range: 25 - 70mm
  • Suitable door thickness: 28 - 50mm
  • Spindle Size: 8mm
  • Handle Projection: 30mm
  • Handle Length: 130mm
  • External Handle protrudes 58mm from door
  • Power Supply: 4 x AAA Alkaline Batteries
  • Battery Life: Approx. 10,000 openings
  • Safe Working Temperature: -20°C to 50°C
  • 3 Year Warranty (*).
