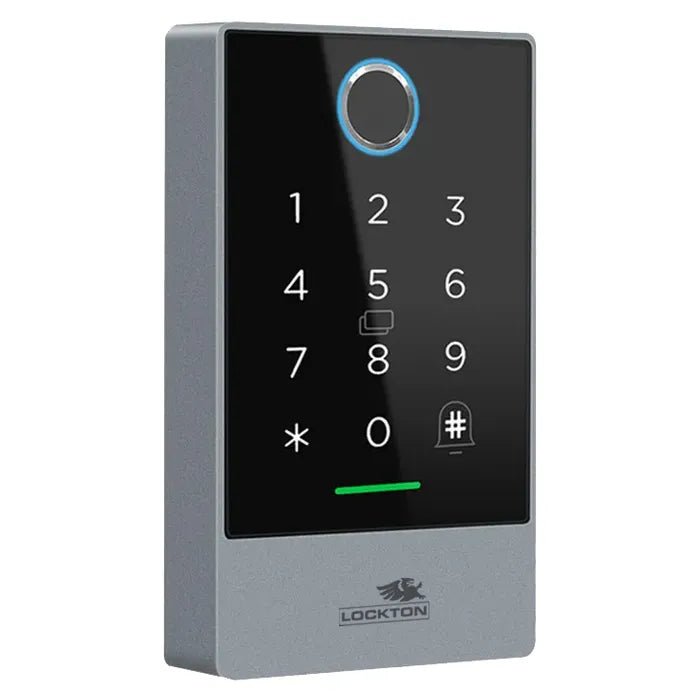

LOCKTON 'E-Series' SMART KEYPAD - Wide - With Fingerscan

LocktonSKU: SKP-W1-FS

Sale price Login to view prices



LOCKTON 'E-Series' Narrow Smart Keypad with Fingerprint, Digital PIN Code, RFID Tag and Mobile App Functionality.

  • The stand-alone design and ease of installation will open more opportunities on job sites
  • This Smart Keypad comes with a built-in single door controller, saving costs on material, labour and additional components
  • Designed with a market standard footprint to upgrade smart functionality on existing Keypads and Readers
  • Compatible with the majority of electric strikes, maglocks and other access control mediums on the market

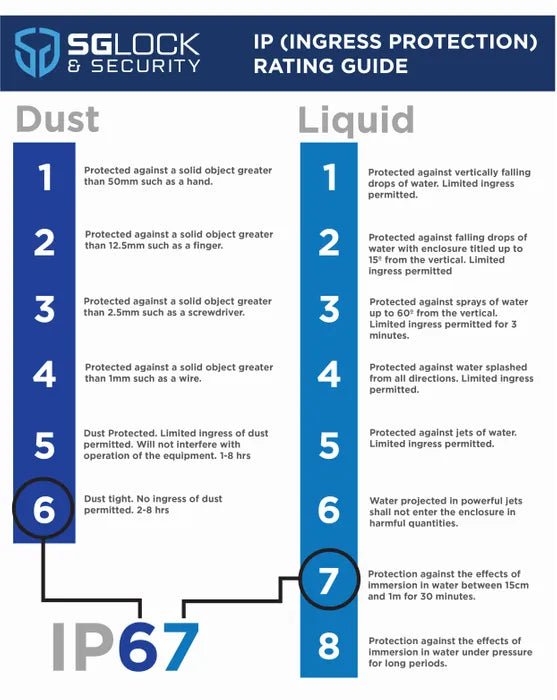

  • IP66 Rating on Keypad means it can be installed in almost any application
  • Easily Use and Manage the keypad via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
  • More Smart Keypads / Doors can be added using the TTLock platform
  • Add up to 1350 x Users
  • Fingerprint sensing area is ergonomically located at the bottom of the keypad to naturally read a thumb print for quick entry
  • Optional G2 & G3 Gateway accessories allow for remote access and control of the keypad via internet

Supplied with:

  • 1 x Wall Mouting Kit (4 x Screws, 4 x Wall Plugs & 1 x Allen Key)
  • 1 x IP66 Kit (45g Elec. Wiring Sealant)
  • 1 x Instruction Manual
  • 2 x LOCKTON E-Series RFID Tags


  • Finish: Silver Body w/ Black Keypad & Sensing Areas
  • Dimensions (W x H x D): 43.5 x 148 x 22mm
  • Supporting Systems: Android 4.3 / iOS 7.0 & Above
  • Stand-by Current: 84mA
  • Operating Current: ≈ 150mA
  • Power Supply: DC 12V
  • IP Rating: IP66
  • RFID Tag Capacity: 1000
  • PIN Code Capacity: 250
  • Fingerprint Capacity: 100
  • Bluetooth E-Keys: Unlimited
  • 3 Year Warranty
