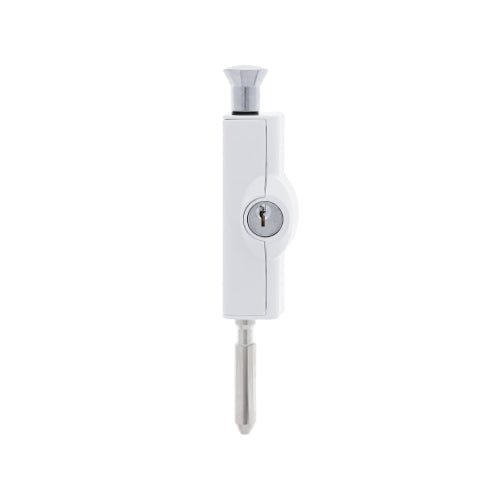

Carbine Patio Bolts Keyed Alike - White, Black, Silver

CarbineSKU: C500-BL-C4-KA1

Sale price$45.00 AUD


The Carbine Patio Bolt lock range is one of the most popular choices for securing sliding, hinged, and French doors in both aluminium and timber. Both the C500 and the Heavy Duty models provide high security, a modular keying system, ease of installation and come in a variety of finishes to suit most applications.

Carbine CBS C500 Patio Bolts offer a higher level of modular security for all general use window and door applications. Ease of installation and high security make this product a leader in its field.

  • Suitable for use on sliding, inward opening and French style doors
  • Stylish design & easy installation
  • Utilises 2 different types of barrels. Our patented C4 wafer barrel allows the use of C4 5 and 6 pin keys or LF wafer barrel allowing the use of Keyline LF29S (Silca LF43R), Keyline LF16 (Silca LF6R)
  • Easily rekeyable
  • Can be supplied less barrel to allow easy choice of barrel system
  • Display pack models are only supplied with the C4 keyway
  • 9.50mm mild steel bolt, duplex nickel plated with 50.25mm bolt extension
  • Bolt can easily be removed for left or right handing
  • High quality metal internal mechanism
  • Fixing screws located under the bolt with no need for tamper proof screws
  • Zinc plated strike and countersunk screws included
  • Bolt can be locked in the open and closed position
  • 4mm packers that can stack
  • Available in black, brown, brass, doeskin, primrose, silver, chrome plate, and white finish
